Basically UHDE BM2.7 can be directly recoated. It means without removing the anode louver or cathode mesh form the pans. Sometime the mesh/louver on old electrode deformed or corroded. We can repair them first.

For BM2.7 Gen.3 and Gen.4, it is better to do Zero Gap Retrofitting, since the gap between anode and cathode is too big. Zero Gap can obviously decrease the cell voltage.

Zero Gap of BiCHLOR

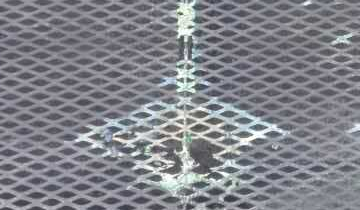

BM2.7 Cathode mesh corrosion
Replace part of the mesh first

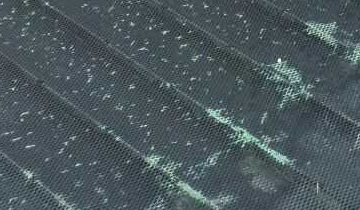

Mesh deformation

BM2.7 Cathode mesh deformation

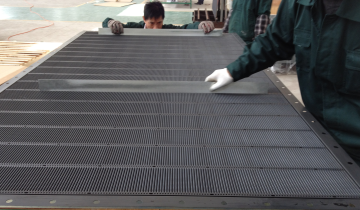

Flatten it before coating
Flattening after coating

Flatten electrode after coating
make sure all dimensions are same as original

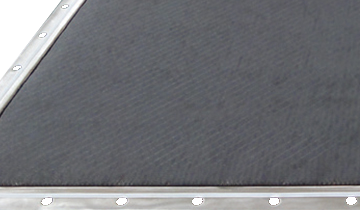

Zero Gap of BM2.7

Zero Gap Retrofitting on BM2.7 Cathode
Nickel mattress and minimesh is used
